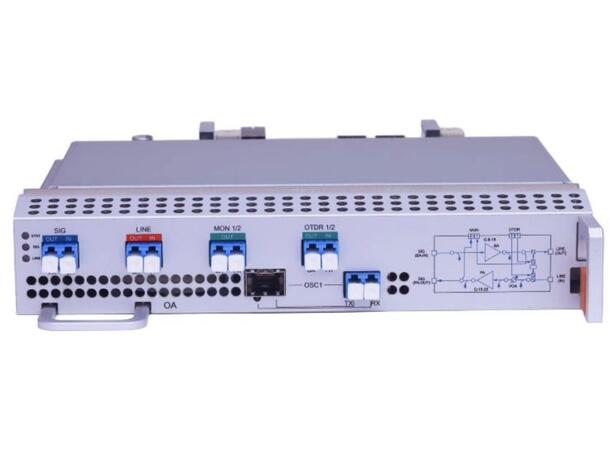

GF-6800-BA20PA20 – C-Band EDFA Booster & Pre-Amplifier Module
The GF-6800-BA20PA20 is a high-performance dual-function EDFA optical amplifier module designed for the HT6800 DCI DWDM Optical Transmission System.
The module integrates both a Booster Amplifier (BA) and a Pre-Amplifier (PA) in a single card, providing optical amplification on both the transmit and receive sides of a DWDM link. It is designed to compensate for optical losses and extend transmission distance in Data Center Interconnect, metro, backbone and long-haul DWDM networks.
The EDFA module supports Automatic Gain Control (AGC), Automatic Power Control (APC) and Automatic Current Control (ACC), together with integrated optical monitoring and remote management functions.
Technical Specifications
• Product type: Dual-function EDFA Optical Amplifier Module
• Model: GF-6800-BA20PA20
• Platform: GF-6800 DCI DWDM Optical Transmission System
• Amplifier configuration: Booster Amplifier (BA), Pre-Amplifier (PA)
• Optical amplifier technology: Erbium-Doped Fiber Amplifier (EDFA)
• Operating band: C-band
• Operating wavelength range: 1528–1565 nm
• Maximum optical output power: up to +20 dBm
• Supported gain range: 8–33 dB
• Typical noise figure: 5.0 dB
• Typical gain flatness: 1.0 dB
• Adjustable input threshold: down to -34 dBm
• Polarization Dependent Loss (PDL): =0.3 dB
• Polarization Dependent Gain (PDG): =0.4 dB
• Polarization Mode Dispersion (PMD): =0.5 ps
• Pump leakage: =-29 dBm
• Return loss: =45 dB
• VOA gain adjustment: ±5 dB
• Chassis occupancy: 2 slots
Amplifier Functions
• Booster Amplifier (BA) for transmit-side optical amplification
• Pre-Amplifier (PA) for receive-side optical amplification
• Compensates for fiber attenuation
• Compensates for passive DWDM MUX/DEMUX losses
• Suitable for extended-reach coherent DWDM links
• Supports high optical link budgets
Operating Modes
• Automatic Gain Control (AGC)
• Automatic Power Control (APC)
• Automatic Current Control (ACC)
• Adjustable AGC gain
• Adjustable APC output power
• Adjustable amplifier control parameters
Monitoring and Management
• Integrated optical power monitoring
• MON port for optical power supervision
• OSC interface for remote network management
• Supports 1510 nm OSC interface
• Supports 1625 nm OTDR interface
• Remote monitoring through the GF-6800 management platform
Mechanical & Environmental Specifications
• Module dimensions: 216 × 254 × 42 mm (W × D × H)
• Operating temperature: -10°C to +60°C
• Storage temperature: -40°C to +80°C
• Relative humidity: 5% to 95%, non-condensing
• Maximum power consumption: =30 W
• Modular GF-6800 card design
Typical Applications
• Data Center Interconnect (DCI)
• Metro DWDM networks
• Long-haul DWDM transmission
• Backbone optical networks
• 100G / 200G / 400G coherent DWDM systems
• Point-to-point optical transmission
• High-loss fiber spans
• Booster amplification after DWDM multiplexers
• Pre-amplification before optical receivers
