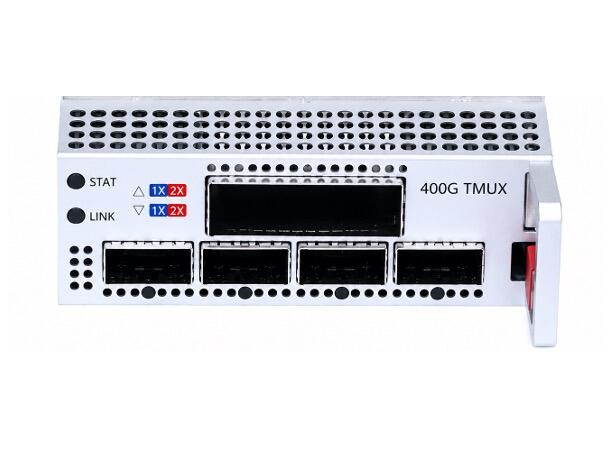

GF-6800 400G CFP2 Muxponder Line Side

The GF-6800-400GTMUX is a high-capacity 400G DWDM muxponder designed for data center interconnect, metro, backbone and long-haul optical transmission networks. The module provides 4×100GE client-side interfaces and supports a coherent CFP2 DWDM line-side interface for transmission at up to 400G per wavelength. It supports tunable DWDM operation across the C-band and provides advanced monitoring, diagnostics and fault-management functions for reliable optical transport.

• Product type: 400G DWDM Muxponder

• Model: HT-6800-400GTMUX

• Client-side capacity: 4 × 100Gbps

• Line-side capacity: 1 × 200Gbps, 1 × 400Gbps

• Client-side interfaces: 4 × QSFP28 100G

• Line-side interface: 1 × CFP2 coherent DWDM module

• Supported services: 100GE and other compatible service access

• Forward Error Correction: FEC supported

• DWDM frequency range: 190.7–196.65 THz

• Supported channel spacing: 50 GHz, 75 GHz, 100 GHz, 150 GHz

• Tunable wavelength operation

• Adjustable DCO optical output power

• DP-QPSK OFEC 100G: 12.5 dB OSNR tolerance

• DP-QPSK OFEC 200G: 14 dB OSNR tolerance

• 16QAM OFEC 400G: 20 dB OSNR tolerance

• Digital diagnostics monitoring (DDM)

• OSNR monitoring

• Real-time bit error rate monitoring

• Automatic Laser Shutdown (ALS)

• Link Fault Pass-through (LFP)

• Local Fault insertion

• Transparent Local Fault and Remote Fault transmission

• LLDP support

• RMON statistics

• Delay measurement

• Hardware and software port loopback testing

• FEC enablement

• Loopback function

• IDLE code stream insertion

• Module size: 107 × 254 × 42 mm (W × D × H)

• Operating temperature: -5°C to +45°C

• Storage temperature: -40°C to +80°C

• Relative humidity: 5% to 95%, non-condensing

• Maximum power consumption: =75 W

• 400G Data Center Interconnect (DCI)

• Metro DWDM networks

• Long-haul DWDM transmission

• Backbone transport networks

• 4×100G aggregation into a single 400G wavelength

• High-capacity point-to-point optical transmission
