GF-6800-400GQDD – 400G QSFP-DD DWDM Muxponder
The GF-6800-400GQDD is a compact, high-capacity 400G DWDM muxponder designed for Data Center Interconnect (DCI), metro and optical transport networks.

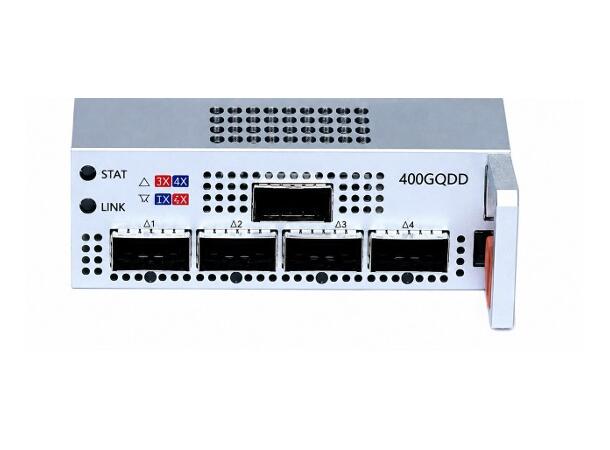

The module provides 4 × 100GE QSFP28 client-side interfaces and a QSFP-DD coherent DWDM line-side interface supporting flexible transmission rates from 100G to 400G. The solution supports multiple optical transmission technologies including FlexO, ZR, ZR+, DR and LR.
Integrated diagnostics, OSNR monitoring, real-time BER monitoring and comprehensive fault-management functions provide reliable operation in high-capacity DWDM networks.
Technical Specifications
• Product type: 400G QSFP-DD DWDM Muxponder
• Model: HT-6800-400GQDD
• Client-side capacity: 4 × 100Gbps
• Client-side interfaces: 4 × QSFP28 100G
• Line-side interface: 1 × QSFP-DD 400G optical DWDM module
• Supported line-side transmission rates:100Gbps, 200Gbps, 300Gbps, 400Gbps
• Supported services: 100GE and other compatible service access
• Forward Error Correction (FEC): Supported
• QSFP-DD interface technologies: FlexO, ZR, ZR+, DR, LR
DWDM Optical Specifications
• Line-side frequency range: 191.3–196.1 THz
• Supported channel spacing:75 GHz, 100 GHz, 150 GHz
• Tunable DWDM operation
• Adjustable QSFP-DD optical output power, depending on module type
OSNR Performance
• 400ZR – oFEC – 16QAM: 24 dB OSNR tolerance
• 200ZR – oFEC – 8QAM: 19 dB OSNR tolerance
• 100ZR – oFEC – 8QAM: 17 dB OSNR tolerance
Monitoring and Management Features
• Digital Diagnostics Monitoring (DDM)
• OSNR monitoring
• Real-time Bit Error Rate (BER) monitoring
• Automatic Laser Shutdown (ALS)
• Link Fault Pass-through (LFP)
• Local Fault insertion
• Transparent Local Fault and Remote Fault transmission
• LLDP support
• RMON statistics
• Hardware and software port loopback testing
• FEC enablement
• Loopback function
• IDLE code stream insertion
Mechanical and Environmental Specifications
• Module size: 107 × 254 × 42 mm (W × D × H)
• Operating temperature: -5°C to +45°C
• Storage temperature: -40°C to +80°C
• Relative humidity: 5% to 95%, non-condensing
• Maximum power consumption: =75 W
Typical Applications
• 400G Data Center Interconnect (DCI)
• 100G/200G/300G/400G coherent DWDM transmission
• 4 × 100G service aggregation
• 400ZR and ZR+ optical transport
• Metro DWDM networks
• High-capacity point-to-point DWDM links
• Backbone optical transport networks
