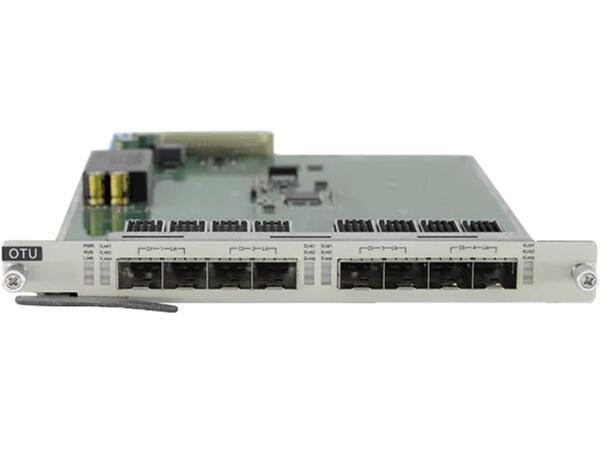

Transponder 8 x 1.25G-10G SFP+ ports
Product Overview

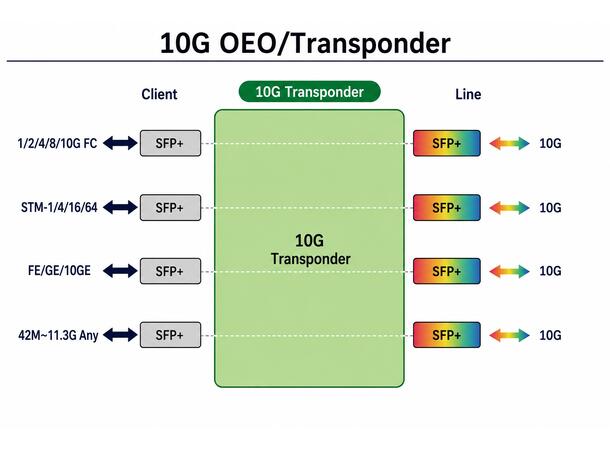

The 1.25G-10G Transponder is designed for use in CWDM and DWDM optical transmission networks. As an intelligent SFP+ transponder module, it converts a transparent data channel into a corresponding CWDM/DWDM wavelength.Through integrated 3R signal regeneration - re-amplification, re-shaping, and re-timing - the module also functions as an optical repeater for signal extension and quality enhancement.
Applications
• Telecom and carrier networks
• Data centers and cloud interconnects
• 5G transport networks
• Long-haul optical backbone systems
Product Highlights
• 3R Signal Regeneration, Re-amplification, Re-shaping, Re-timing
• Multi-rate support: 1 Gbps – 10 Gbps
• Supports loopback test for performance verification
• Supports LFP (Link Fault Pass-Through)
• Flexible protocol transmission: transparent for multiple services
• Supported protocols:
o Fibre Channel 1/2/4/8/10 Gbps
o CPRI 2/3/4/5/6/7
o 1G/10G Ethernet (LAN or WAN PHY)
o SONET OC-24 / OC-48 / OC-192
o SDH STM-16 / STM-64
Technical Specifications
Optical Parameters
• Center Wavelength: ITU-T G.694.x compliant
o CWDM: 1271 ~ 1611 nm
o DWDM: 1529.5 ~ 1565.50 nm
o Standard options: 850 / 1310 / 1550 nm
• Data Rate:
o Fibre Channel 1/2/4/8/10 Gbps
o CPRI 2/3/4/5/6/7
o 1G/10G Ethernet (LAN/WAN PHY)
o SONET OC-24 / OC-48 / OC-192
o SDH STM-16 / STM-64
• 3R Regeneration: Re-amplification, Re-shaping, Re-timing
• Optical Interface Type: 8 × SFP+ slots
Network Management System (NMS)
• TELNET
• SNMP
• Web GUI management
Mechanical Parameters
• Size: 191 (W) × 253 (D) × 20 (H) mm
• Chassis Compatibility: HT6000 CH04 / CH08 / CH20
Environmental Conditions
• Operating Temperature: -10 C ~ +60 C
• Storage Temperature: -40 C ~ +80 C
• Relative Humidity: 5 % ~ 95 %, non-condensing
Electrical Characteristics
• Power Consumption: = 30 W
