40G & 100G Transponder
Product Overview

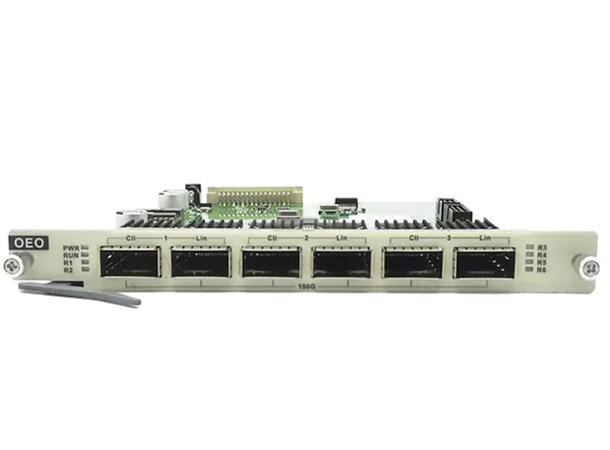

The 40G & 100G Transponder is a high-performance optical relay module designed for DWDM and CWDM metro transmission networks.
It supports three 40G or 100G service channels, providing signal regeneration, amplification, and wavelength conversion.
Each service signal can be converted into standard WDM wavelengths, enabling the multiplexing and demultiplexing of optical signals across different wavelength channels.
This makes the transponder an ideal solution for short- and medium-haul metropolitan wavelength-division transmission at 40G or 100G rates.
The module is fully compatible with the GF-6000 series chassis (CH04, CH08, CH20).
Applications
• Metropolitan area network (MAN) wavelength-division systems
• 40G / 100G short- to medium-range optical transmission
• Data center interconnect and cloud transport
• Signal relay and wavelength conversion in DWDM/CWDM networks
• High-speed enterprise backbone interconnections
Product Highlights
• Supports three 40G or 100G services for simultaneous operation
• 3R regeneration: re-amplification, re-shaping, and re-timing
• Converts native client signals to WDM standard wavelengths for multiplexing/demultiplexing
• Enables relay and amplification for optical signal extension and quality improvement
• Supports transparent OEO (optical-electrical-optical) conversion across 40G and 100G protocols
• Compact, hot-swappable design for integration in GF-6000 platform
• Low power consumption (=30 W) and high reliability
• Integrated NMS management: TELNET, SNMP, Web GUI
Technical Specifications
System Parameters
• Data Rate: 40Gbps / 100Gbps

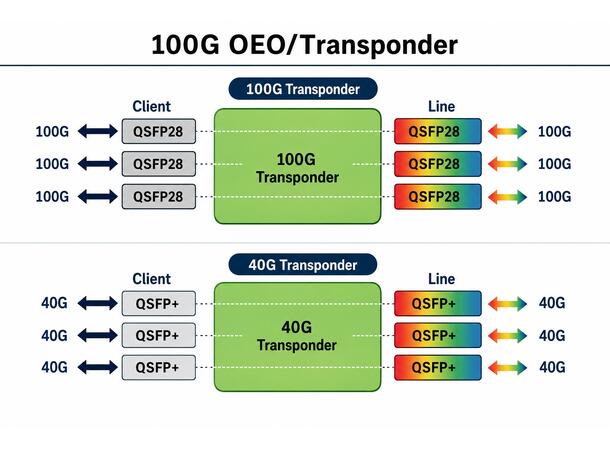

• Interfaces: Client Side: 100G QSFP28 or 40G QSFP+, Line Side: 100G QSFP28 or 40G QSFP+
• Service Model: Supports OEO relay, amplification, regeneration, and wavelength conversion
• Network Management: TELNET, SNMP, Web GUI
Mechanical Parameters
• Dimensions: 191 (W) × 253 (D) × 20 (H) mm
• Chassis Compatibility: GF-6000 CH04 / CH08 / CH20
Environmental Conditions
• Operating Temperature: -10 C ~ +60 C
• Storage Temperature: -40 C ~ +80 C
• Relative Humidity: 5 % ~ 95 % (non-condensing)
Electrical Characteristics
• Power Consumption: = 30 W
