The GF-162G-1U02A-GX is a 1U, 19? rack-mount coexistence WDM element (CEx) that lets operators run GPON and XGS-PON on the same fiber using wavelength division multiplexing. It’s built for ISP ODNs, campus/enterprise access, and upgrades from GPON to XGS-PON without rewiring. Band plans match the PON standards: GPON 1290–1330/1480–1550 nm and XGS-PON 1260–1280/1575–1580 nm.
Product summary
• True GPON/XGS-PON coexistence on a single strand (CEx WDM).
• Low insertion loss: <0.9 dB (COM?GPON), <1.1 dB (COM?XGS-PON).
• High isolation: >30 dB for both bands; Return loss: >55 dB; Directivity: >55 dB.
• Rugged build: –40 to +85 °C, 5–90% RH; optical power handling: <300 mW.

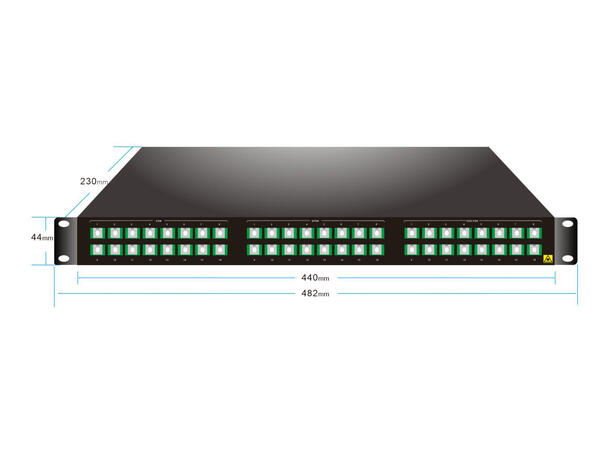

• Installer-friendly: 1U 19? chassis (440×230×44 mm, ~2.5 kg) with SC/APC ports.
Key specifications

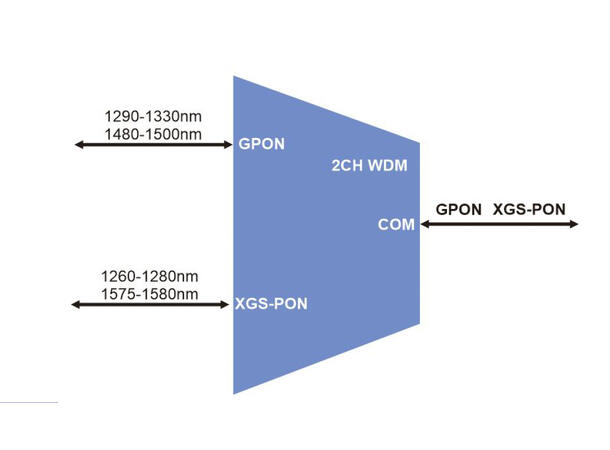

• Bandpass: GPON 1290–1330/1480–1550 nm; XGS-PON 1260–1280/1575–1580 nm
• Insertion loss (IL): <0.9 dB (COM–GPON), <1.1 dB (COM–XGS-PON); uniformity: <0.8 dB
• Isolation: >30 dB (both bands)
• Return loss: >55 dB; PDL: <0.3 dB; PMD: <0.2 ps
• Optical power handling: <300 mW
• Environment: –40…+85 °C operating / storage; 5–90% RH
• Form factor: 1U 19?; Dimensions: 440×230×44 mm; Net weight: ~2.5 kg

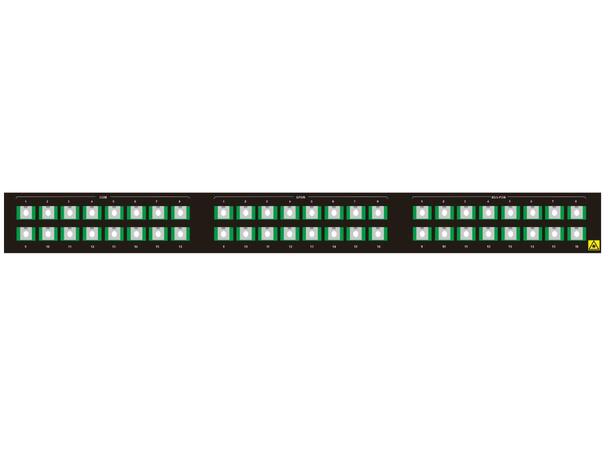

• Connectors: SC/APC
Note: IL includes WDL, TDL and PDL with two sets of mated connectors at both ends.
Applications
• Residential broadband access (ODN upgrades; split ratios up to 1:128 for GPON).
• Enterprise/campus access and smart city rollouts.
• High-bandwidth, low-latency services and 5G fronthaul where XGS-PON’s 10G symmetric rates (splits up to 1:256) are required.
