100GHz 4-Channel Dual Fiber DWDM OADM with Monitor Port
Plug-in LGX Module, LC/UPC, West & East – ITU-T G.694.1 Compliant

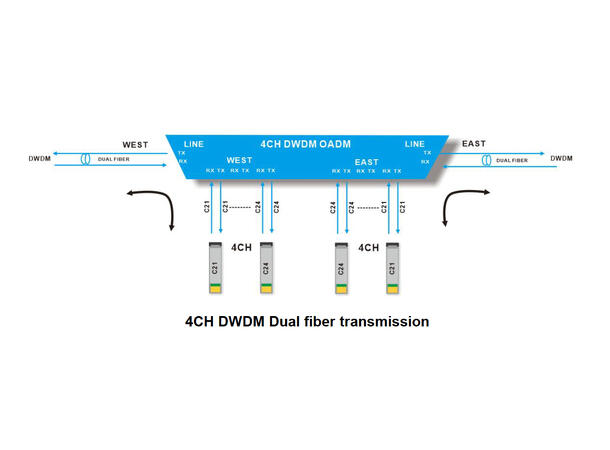

The 100GHz 4CH Dual Fiber DWDM OADM (Optical Add-Drop Multiplexer) is a fully passive LGX plug-in module designed for high-capacity C-band DWDM networks. Built in accordance with the ITU-T G.694.1 100GHz (0.8nm) grid, this solution enables the drop and add of four DWDM channels in dual-fiber transmission systems while maintaining extremely low insertion loss.
Key Features
• 4-channel DWDM add/drop functionality (dual fiber)
• ITU-T G.694.1 compliant 100GHz channel spacing (0.8nm)
• West and East line ports
• Integrated monitor (MON) port
• Fully passive design (no power required)
• LC/UPC optical connectors
• Plug-in LGX module format
• Compatible with 4-slot 1U 19” rack chassis
• Optimized for C-band applications
Technical Specifications
Optical Parameters
• Wavelength Grid: ITU-T G.694.1 100GHz
• Channel Spacing: 100GHz (0.8nm)
• Channel Passband: ±0.11nm
• Technology: TFF (Thin Film Filter)
Insertion Loss
• Waves to Line: = 1.2dB
• Line to Line: = 1.5dB
• Monitor Port (MON): = 26dB
Optical Performance
• Return Loss: = 45dB
• Directivity: = 45dB
• Polarization Mode Dispersion (PMD): = 0.1ps
• Polarization Dependent Loss (PDL): = 0.3dB
Channel Isolation
• Adjacent Channels: = 30dB
• Non-Adjacent Channels: = 45dB
Enviromental Specifications
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C

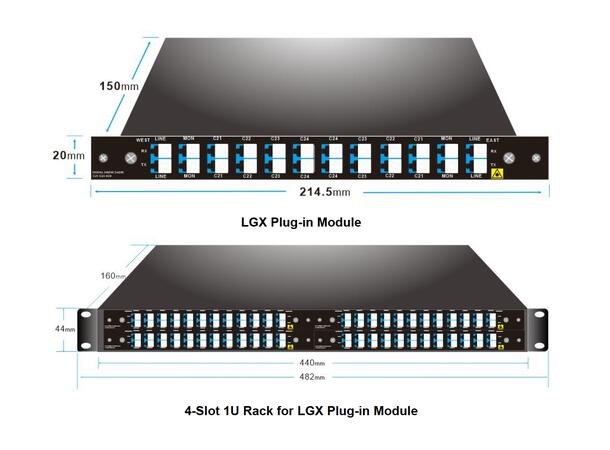

Mechanical Specifications
LGX Plug-in Module
• Dimensions: 214.5 × 150 × 20 mm
• Net Weight: 0.5 kg
4-Slot 1U Rack (Optional)
• Dimensions: 440 × 160 × 44 mm
• Net Weight: 3.5 kg
• 19” standard rack mount
Available Channel Configurations
The 4CH DWDM OADM module is available in multiple ITU channel groupings, including:
• C21–C24
• C25–C28
• C29–C32
• C33–C36
• C37–C40
• C41–C44
• C45–C48
• C49–C52
• C53–C56
• C57–C60
• Custom channel combinations available upon request
Typical Applications
• DWDM backbone expansion
• Metro ring networks
• Data center interconnect (DCI)
• Broadcast and TV distribution
• Government and financial secure transport
• Cloud and high-density data environments
