100GHz 2-Channel Dual Fiber DWDM OADM with Monitor Port
ITU-T G.694.1 Compliant | LC/UPC | Plug-in LGX Module | West & East Line Ports
The 100GHz 2CH Dual Fiber DWDM OADM (Optical Add-Drop Multiplexer) is a fully passive LGX plug-in module designed for efficient add/drop functionality in C-band DWDM transmission systems. Built in accordance with the ITU-T G.694.1 100GHz (0.8nm) grid, this solution enables the drop and add of two DWDM channels within a dual-fiber architecture while maintaining ultra-low insertion loss and high channel isolation.
This compact and scalable DWDM OADM module is ideal for telecom operators, metro networks, broadcast and TV distribution, data centers (IDC), financial networks, government infrastructure, and cloud backbone environments.
Key Features
• 2-channel DWDM add/drop functionality (dual fiber)
• ITU-T G.694.1 compliant 100GHz channel spacing (0.8nm)
• West and East line ports for bidirectional dual-fiber transmission
• Integrated Monitor (MON) port
• Fully passive design (no power required)
• LC/UPC optical connectors
• LGX plug-in module format
• Compatible with 4-slot 1U 19” rack chassis
• Optimized for C-band DWDM deployment
Optical Specifications
Wavelength & Grid
• DWDM Grid: ITU-T G.694.1
• Channel Spacing: 100GHz (0.8nm)
• Channel Passband: ±0.11nm
• Technology: TFF (Thin Film Filter)
Insertion Loss
• Waves to Line: = 1.2dB
• Line to Line: = 1.5dB
• Monitor Port (MON): = 26dB
Optical Performance
• Return Loss: = 45dB
• Directivity: = 45dB
• Polarization Mode Dispersion (PMD): = 0.1ps
• Polarization Dependent Loss (PDL): = 0.3dB
Channel Isolation
• Adjacent Channel Isolation: = 30dB
• Non-Adjacent Channel Isolation: = 45dB
Environmental Specifications
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
Designed for carrier-grade performance and harsh environments.

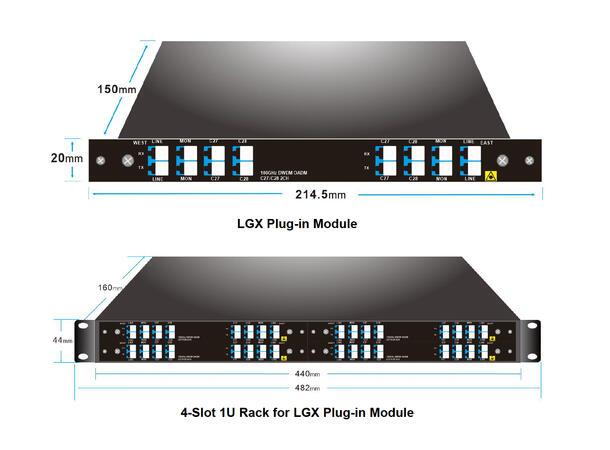

Mechanical Specifications
LGX Plug-in Module
• Dimensions: 214.5 × 150 × 20 mm
• Net Weight: 0.5 kg
Optional 4-Slot 1U Rack
• Dimensions: 440 × 160 × 44 mm
• Net Weight: 3.5 kg
• Standard 19” rack-mount format
Available Channel Configurations
The 2CH DWDM OADM module is available across the full C-band range, including:
C21/C22
C23/C24
C25/C26
C27/C28
C29/C30
C31/C32
C33/C34
C35/C36
C37/C38
C39/C40
C41/C42
C43/C44
C45/C46
C47/C48
C49/C50
C51/C52
C53/C54
C55/C56
C57/C58
C59/C60
Custom channel combinations are supported upon request.
Typical Applications
• Metro DWDM ring networks
• Backbone fiber expansion
• Data Center Interconnect (DCI)
• Broadcast and media distribution
• Secure financial and government transport networks
• Cloud and high-density DWDM environments
