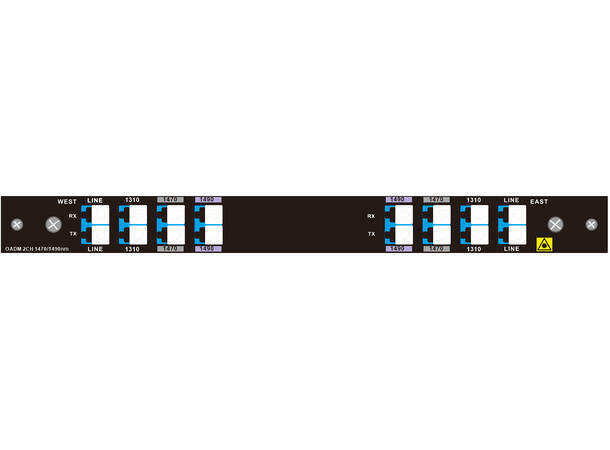

The GLOBALfiber G-COADM-2+1-LX4-xxyy is a passive CWDM OADM that adds and drops selected wavelengths on east and west optical paths. This LGX4 module version provides 2 add/drop channels + 1310 nm port for dual fiber, west and east networks, making it suitable for wavelength-based expansion of existing fiber infrastructure. Its channel configuration is Selected CWDM pair; 20 nm spacing.
The add/drop ports provide access to the selected wavelengths while the line ports carry the through path. Match the channel selection to the transceivers and include the loss of every add/drop and through section when planning the optical link.
Key specifications
| Specification |
Details |
| Product number |
G-COADM-2+1-LX4-xxyy |
| Product type |
Passive CWDM OADM |
| Channel configuration |
2 add/drop channels + 1310 nm port |
| Channel plan |
Selected CWDM pair; 20 nm spacing |
| Available channel pairs |
C47 + C49; C51 + C53; C55 + C57; C59 + C61 |
| Fiber arrangement |
Dual fiber, west and east |
| Optical connectors |
LC/UPC |

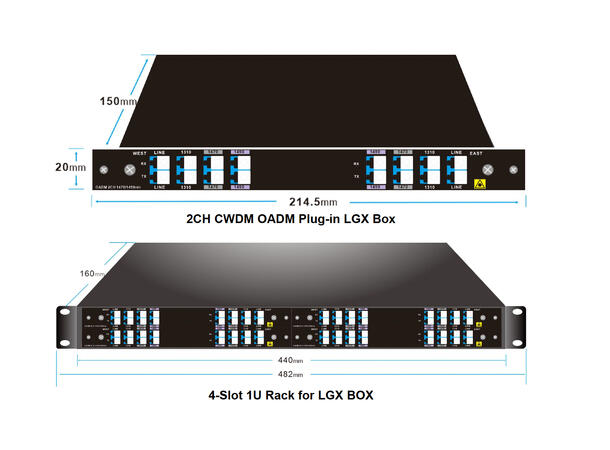

| Housing |
LGX4 module |
| Additional ports |
1310 nm; 1260-1360 nm passband |
| Operating temperature |
-40 to +85 °C |
Installation requirements
Match each add/drop wavelength to the connected transceiver and follow the east/west port labels. Confirm connector polish and the remaining link budget before installation.
