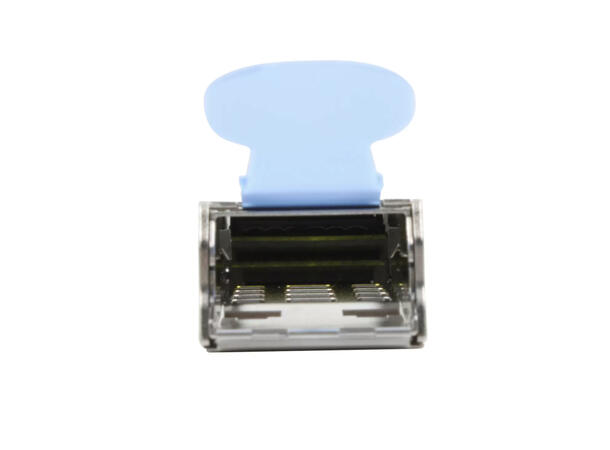

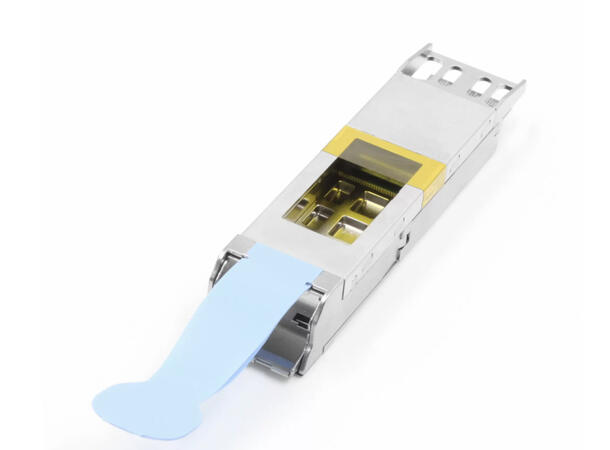

Converter OSFP to QSFP-DD/QSFP56/QSFP28

OSFP-to-QSFP adapter is a physical converter that allows you to use a QSFP module (such as QSFP28, QSFP56, QSFP-DD, or QSFP112) in a switch with an OSFP port.

Supported Modules: QSFP112, QSFP56, QSFP28 (varies by switch ASIC and software support)
Protocols: Ethernet, InfiniBand (HDR/NDR for select models)


Key Features

- Compliant with IEEE802.3ck (800GBASE-CR8)
- Compliant with IEEE802.3ck (400GBASE-CR4)
- Compliant with IEEE802.3cd (400GBASE-CR8)
- Compliant with IEEE802.3cd (200GBASE-CR4)
- Compliant with IEEE802.3bj (200GBASE-CR8)
- Compliant with IEEE802.3bj (100GBASE-CR4)
- Compliant with IEEE802.3ba (40GBASE-CR4)
- Data rates : 56Gbps/Lane(or 112Gbps/Lane)
- I/O Connector designed for high speed differential signal applications
- Connector Compliant with OSFP Octal Small form factor Pluggable module - - OSFP MSA & QSFP-DD MSA Standard
- Low Power Consumption: < 0.5W
- RoHS compliant
