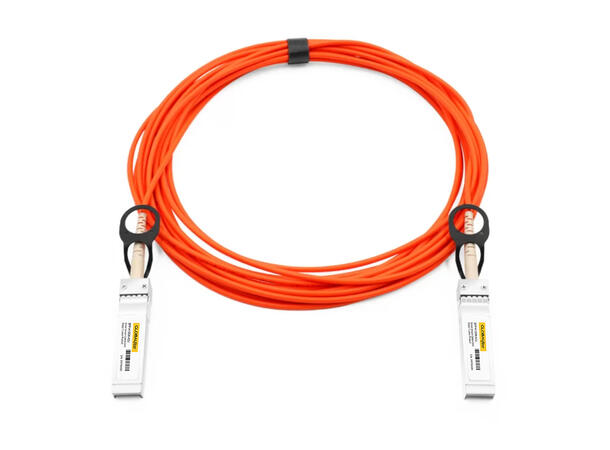

SFP+ Active Optical Cable (AOC)

SFP+ Active Optical Cables (AOCs) are high-performance, pre-terminated fiber cables with integrated SFP+ modules at both ends. Designed for 10 Gigabit Ethernet (10GbE) applications, these cables operate over multi-mode fiber (MMF) and offer a plug-and-play alternative to separate optical transceivers and patch cords.

Compliant with the SFF-8431 MSA standard, this SFP+ AOC provides a cost-effective and low-power solution for short-distance, high-speed connections within data centers and enterprise networks.

Specifications – SFP+ to SFP+ Active Optical Cable (AOC)
• Connector Type: SFP+ to SFP+
• Maximum Data Rate: 10Gbps
• Cable Type: OM3 multimode fiber
• Cable Length: 1 to 30 meters (3.28ft to 98.4ft)
• Minimum Bend Radius: 30mm
• Power Consumption: < 0.8W
• Jacket Material: OFNP (Plenum-rated)
• Operating Temperature: 0°C to 70°C
• Supported Protocols:
o SFF-8636
o InfiniBand QDR, DDR, SDR
o 10 Gigabit Ethernet (10GbE)
• Warranty: 5 Years
