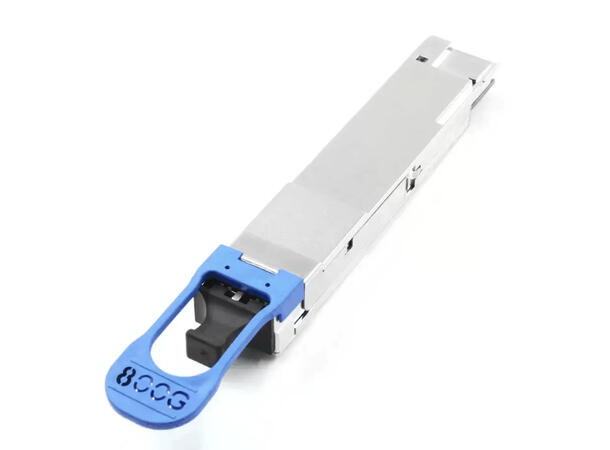

QDD-800G-2LR4 Compatible 800GBASE 2x LR4 QSFP-DD PAM4 Optical Transceiver Module, SMF, 1310nm, 10km, Dual Duplex LC/UPC, DOM.
The 800GBASE 2x LR4 QSFP-DD Optical Transceiver Module is designed to support 800GBASE Ethernet over distances up to 10 km using eight pairs of single-mode fiber (SMF) with dual duplex LC/UPC connectors. It complies with IEEE 802.3cu and CMIS Rev. 5.0 standards.
This module features two duplex LC connectors, allowing for two independent 400G LR4 links from a single 800G transceiver—eliminating the need for optical breakout cables. It can also be configured as a single 400G port (4×100G PAM4) for 400G Ethernet applications. It is well-suited for 800G and 400G Ethernet networks, data centers, and 2×400G LR4 breakout deploymentSpecifications
Specification
• Form Factor: QSFP-DD
• Max Data Rate: 850Gbps (8 × 106.25Gbps)
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm
• Max Cable Distance: 10km
• Connector: Dual Duplex LC/UPC
• Media: Singlemode Fiber (SMF)
• Transmitter Type: EML
• Receiver Type: PIN
• TX Power: -2.7 to 5.1dBm
• Minimum Receiver Power: -9dBm
• Power Budget: 6.3dB
• Receiver Overload: 5.1dBm
• Max Power Consumption: 18W
• Extinction Ratio: 3.5dB
• Modulation (Electrical): 8 × 100G PAM4
• Modulation (Optical): 8 × 100G PAM4
• Packaging Technology: Chip on Board (COB)
• DSP: Broadcom
• Inbuilt FEC: Yes
• Protocols: CMIS Rev 5.0, IEEE 802.3cu-2021, 100G Lambda MSA-400G-LR4-10, QSFP-DD MSA HW Rev 6.01
• Warranty: 5 Years
