Muxponder 200G TMUX-2

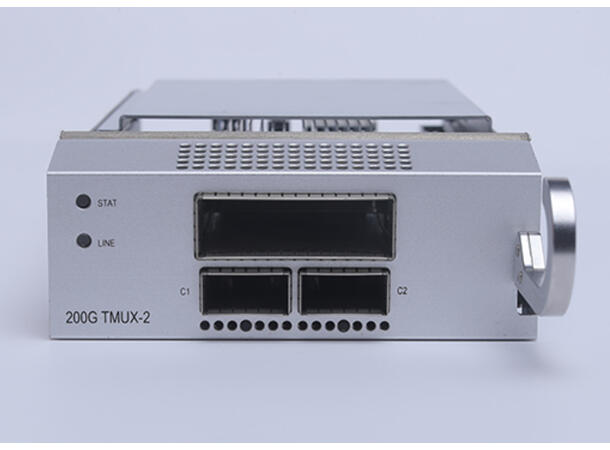

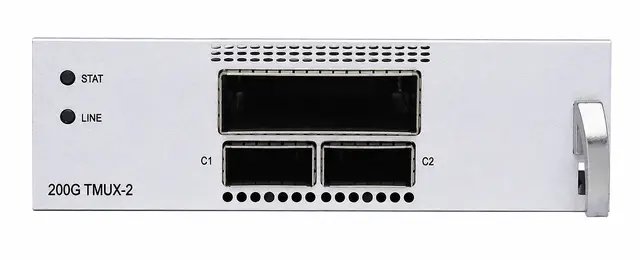

The 200G TMUX-2 is a compact coherent DWDM transponder/muxponder designed for aggregation of up to 2 × 100G client services into a single 100G or 200G coherent DWDM line interface. The client side provides 2 × QSFP28 ports and supports 100GbE, OTU4 and 100G FlexE services. The line side uses a CFP2-DCO coherent module with tunable C-band operation.
Features
• Supports 2 × 100G client-side service interfaces
• Supports 1 × 100G or 1 × 200G coherent line-side service
• Client side supports: 100GbE, 100G OTU4, 100G FlexE
• Line side supports: 100G and 200G coherent transmission
• Supports 1 × CFP2-DCO coherent DWDM module
• Supports tunable frequency range from 191.3 THz to 196.1 THz
• Supports: 50/75/100 GHz channel spacing
• Supports tunable optical output power
• Supports hardware loopback testing
• Supports software loopback testing
• Supports Digital Diagnostic Monitoring, DDM
• Supports real-time OSNR monitoring
• Supports real-time BER monitoring
• Supports ALS – Automatic Laser Shutdown
• Supports transparent transmission of: Local and Remote Fault
• Supports LLDP – Link Layer Discovery Protocol
• Supports Ethernet RMON statistics
• Supports latency and transmission delay measurement
• Suitable for metro, regional and DCI coherent DWDM applications
Technical Specifications
• Product Type: 100G/200G coherent DWDM transponder/muxponder
• Maximum Transport Capacity: 200 Gbps
• Client-Side Capacity: 2 × 100G
• Line-Side Capacity: 1 × 100G or 1 × 200G
• Client-Side Interfaces: 2 × QSFP28
• Line-Side Interface: 1 × CFP2-DCO coherent DWDM
• Supported Client Services: 100GbE, 100G OTU4, 100G FlexE
• Supported Line Rates: 100 Gbps, 200 Gbps
• Optical Frequency Range: 191.3–196.1 THz
• Channel Spacing: 50/75/100 GHz
• Optical Frequency Tuning: Fully tunable within supported C-band frequency range
• Optical Output Power: Tunable
• Coherent Modulation Formats: DP-QPSK, 16QAM
• Forward Error Correction: OFEC
• OSNR Monitoring: Supported
• BER Monitoring: Real-time BER monitoring supported
• Digital Diagnostics: DDM supported
• Ethernet Performance Monitoring: RMON supported
• RMON Statistics Include:
o Transmitted packets
o Received packets
o Transmitted bytes
o Received bytes
o Port utilization
o CRC errors
o Error packets
• LLDP: Supported
• Delay Measurement: Supported
• Hardware Loopback: Supported
• Software Loopback: Supported
• ALS: Automatic Laser Shutdown supported
• Local Fault Transmission: Supported
• Remote Fault Transmission: Supported
• Dimensions: 107 mm (W) × 254 mm (D) × 42 mm (H)
• Maximum Power Consumption: =30 W
• Operating Temperature: -5°C to +45°C
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 5% to 95%, non-condensing
OSNR Performance
• 100G DP-QPSK with OFEC: OSNR tolerance of 12.5 dB
• 200G DP-QPSK with OFEC: OSNR tolerance of 14 dB
• 200G 16QAM with OFEC: OSNR tolerance of 20 dB
Typical Applications
• Data Center Interconnect, DCI
• Metro DWDM networks
• Regional optical transport networks
• 100G service aggregation
• 200G coherent transmission
• Point-to-point DWDM links
• Passive DWDM systems
• ROADM-based optical networks
• Capacity upgrades of existing C-band DWDM infrastructure
