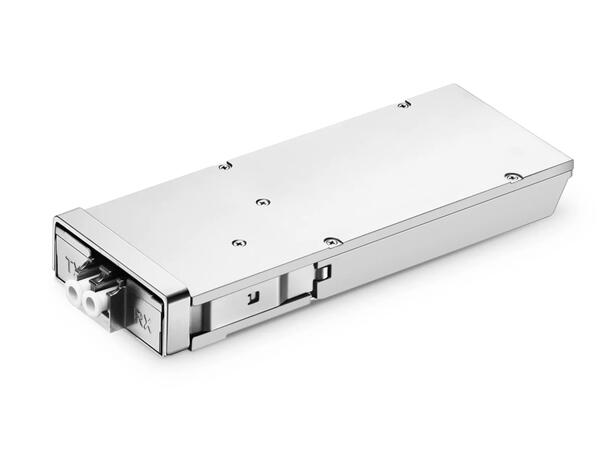

200G/100G Coherent CFP2-DCO Transceiver – Up to 1000 km / 2000 km
The CFP2-200G-DCO is a high-performance coherent CFP2-DCO optical transceiver designed for long-distance DWDM transmission in metro, regional and DCI networks. The module supports flexible 100G and 200G transmission, with reach beyond 1000 km at 200G and up to 2000 km at 100G over single-mode fiber.
The transceiver integrates coherent DSP functionality and supports PM-16QAM, PM-QPSK and PM-DQPSK modulation together with SD-FEC. It is designed for installation directly into CFP2-DCO compatible host systems, eliminating the need for an external coherent transponder in suitable applications.
Key Features
• CFP2-DCO coherent optical transceiver
• Supports 100G and 200G flex-rate operation
• Transmission reach: 200G: beyond 1000 km, 100G: up to 2000 km
• DWDM C-band operation
• Tunable frequency range: 191.30 to 196.05 THz
• 50 GHz ITU-T channel grid
• 200G modulation: PM-16QAM
• 100G modulation: PM-QPSK, PM-DQPSK
• Integrated SD-FEC
• Supports: OTUC2 / OTLC2, OTU4 / OTL4.4
• CEI-28G-MR compliant host electrical interface
• Hot-pluggable CFP2 form factor
• CFP2 MSA Hardware Specification Rev. 1.0 compliant
• CFP MSA Management Interface Specification Version 2.6 compatible
• Integrated line and client PRBS generator/checker
• Supports line loopback
• Supports host terminal and facility loopback
• MDIO management interface
• Single 3.3 V DC supply
• Duplex LC optical interface for single-mode fiber.
Transmission Performance
200G mode
• Host format: OTUC2
• Host interface: OTLC2
• Line modulation: PM-16QAM
• Baud rate: 39.7 Gbaud
• Minimum channel spacing: 50 GHz
• FEC: SD-FEC
• FEC overhead: 25%
• End-of-life Rx OSNR requirement: approximately 17 dB
• Typical reach: >1000 km over SMF.
100G mode
• Host format: OTU4
• Host interface: OTL4.4
• Line modulation: PM-QPSK, PM-DQPSK
• Baud rate: 33.6 Gbaud
• Minimum channel spacing: 50 GHz
• FEC: SD-FEC
• FEC overhead: 25%
• End-of-life Rx OSNR:
o PM-QPSK: approximately 11.5 dB
o PM-DQPSK: approximately 13 dB
• Typical reach: up to 2000 km over SMF.
Optical Transmitter Specifications
• Tunable frequency range: 191.30 – 196.05 THz
• Channel grid: ITU-T 50 GHz
• Optical output power range: -10 to +1 dBm
• Default output power: approximately +0.5 dBm
• Output power stability: ±0.3 dB
• Output power accuracy and stability: ±1 dB
• Transmitter OSNR: 35 dB/0.1 nm
• Optical return loss: 24 dB
• Output power with transmitter disabled: maximum approximately -35 dBm
• Wavelength switching time: up to 60 seconds
• Cold-start transmitter turn-up time: 60–120 seconds.
Optical Receiver Specifications
• Receiver frequency range: 191.30 – 196.05 THz
• Optimum input power range: -14 to 0 dBm
• Extended input power range: -18 to 0 dBm
• Extended range penalty: approximately 0.5 dB OSNR
• BOL OSNR tolerance: 200G PM-16QAM: 16.2–16.7 dB/0.1 nm, 100G PM-QPSK: 10.6–11 dB/0.1 nm, 100G PM-DQPSK: 12.3–12.8 dB/0.1 nm
• Chromatic dispersion tolerance: 200G: -10,000 to +40,000 ps/nm, 100G: -10,000 to +100,000 ps/nm
• PMD tolerance: 200G: 25 ps, 100G: 30 ps
• PDL tolerance: 6 dB
• Optical input transient tolerance: 6 dB
• Optical return loss: 27 dB.
Electrical Interface
• Host electrical interface: CEI-28G-MR
• CFP2 electrical connector: 104-pin
• Supply voltage: Minimum: 3.2 V, Typical: 3.3 V, Maximum: 3.4 V
• Maximum supply current: 9 A
• Maximum current per power pin: 1.125 A
• Low-power mode: <2 W
• Management interface: MDIO
• MDIO clock: up to 4 MHz
• MDIO data rate: up to 4 Mb/s.
Power Consumption
• 200G PM-16QAM: up to approximately 26 W
• 100G PM-QPSK / PM-DQPSK: up to approximately 21 W
• With framer disabled: 200G: approximately 25 W, 100G: approximately 20 W
• Low-power mode: <2 W.
Environmental Specifications
• Operating temperature: -5°C to +70°C
• Short-term operating temperature: up to +75°C
• Storage temperature: -40°C to +85°C
• Operating relative humidity: up to 85%
• Storage relative humidity: up to 85%
• Maximum specified module storage time: 2 years under controlled room-temperature and humidity conditions.
Mechanical Specifications
• Form factor: CFP2-DCO
• Dimensions: approximately 107.5 × 41.5 × 12.4 mm
• Host connector: 104-pin CFP2
• Optical connector: Duplex LC
• Fiber type: Single-mode fiber
• Hot-pluggable design.
Management and Monitoring
• MDIO-based module management
• Transmitter disable
• Module reset
• Low-power control
• Receiver loss-of-signal alarm
• Module-present detection
• Programmable alarms
• Global alarm output
• Line PRBS generator/checker
• Client PRBS generator/checker
• Line loopback
• Host terminal/facility loopback.
Compliance
• CFP2 MSA Hardware Specification Rev. 1.0
• CFP MSA Management Interface Specification Version 2.6
• CEI-28G-MR
• IEC/EN 60825-1 Class 1 laser safety
• GR-1089-CORE electromagnetic emission and immunity
• GR-63 fire resistance
• GR-468 reliability
• RoHS compliant.
Typical Applications
• Long-haul DWDM transmission
• Metro and regional optical networks
• Data Center Interconnect – DCI
• 100G / 200G coherent transport
• Router-to-router coherent DWDM links
• Optical transport platforms
• High-capacity point-to-point links
Important: According to the datasheet, the line framing is proprietary, and both ends of the optical connection must use compatible technology when using the specified proprietary SD-FEC/line format.
